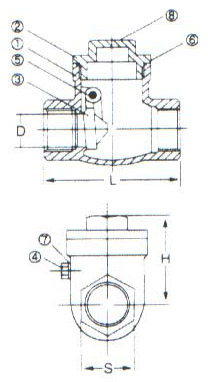

Swing Check Valve


Full port pressure temperature rating 200 PSI W.O.G.
350 F.S.P. threaded ends conform to ANSI B 2.1, BS 21, DIN 259/2999, stainless steel class 200 screwed cap, swing type disc, integral seat.

Material list
No.
PART NAME
SPECIFICATION
1
BODY
ASTM A351 GR.CF8M
2
BONNET
ASTM A351 GR.CF8M
3
DISC
ASTM A351 GR.CF8M
4
PLUG
S.S.316
5
PIN
S.S.316
6
PLUG GASKET
PTFE
7
GASKET
PTFE

Dimension (mm)
SIZE
D
L
H
S
1/2"
15
65
44
26
3/4"
20
80
53
32
1"
25
90
58
40
1-1/4"
32
105
62
50
1-1/2"
40
120
73
56
2"
50
141
78
68
